RS1950ISLC-20

Additional information

Weight 120 lbs
Dimensions 30.5 × 26 × 19 in
Material

Finish

Capacity

Fill Contents

Diesel Fuel

Tank Location

Driver side

Shape

Rectangular

With Step

Yes

Description

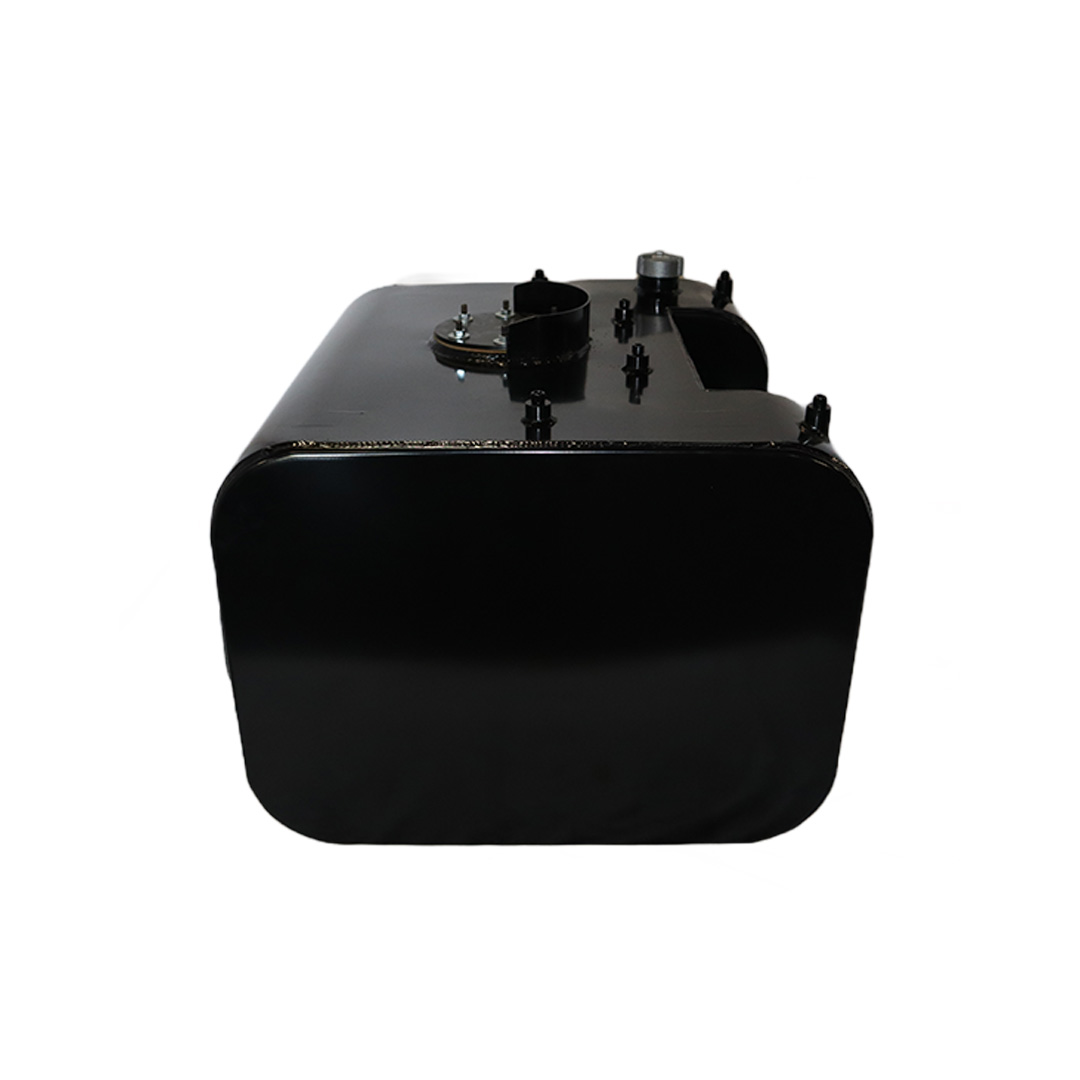

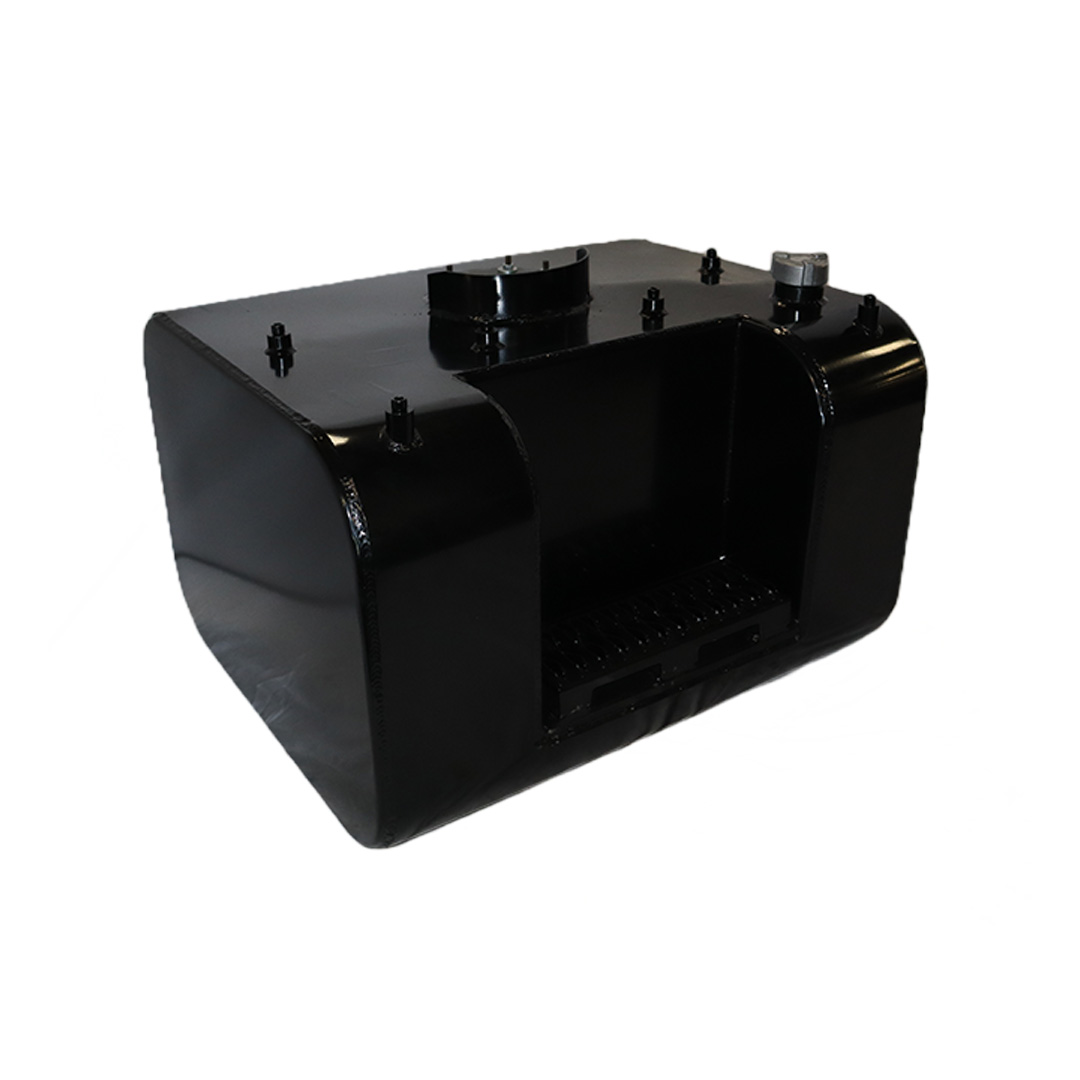

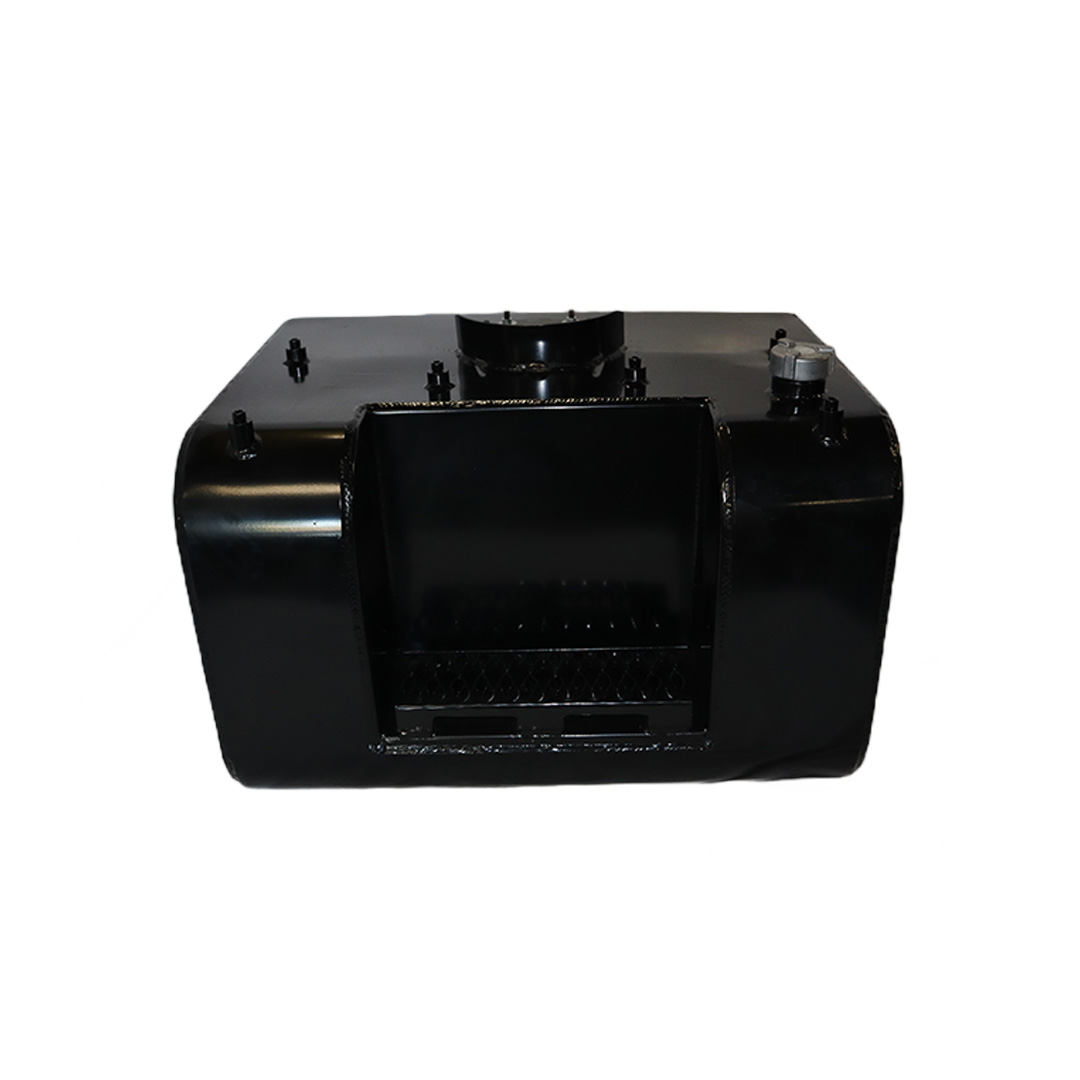

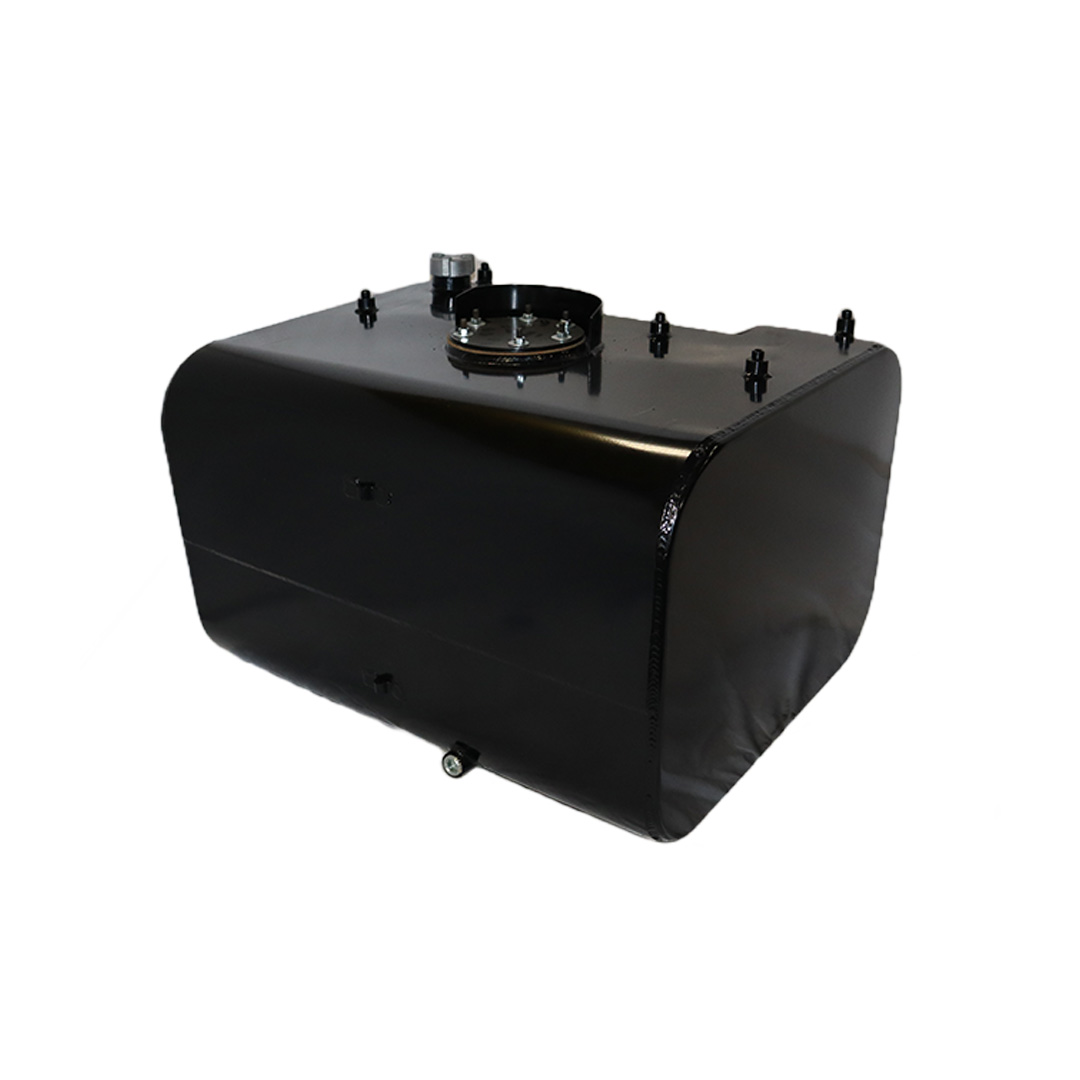

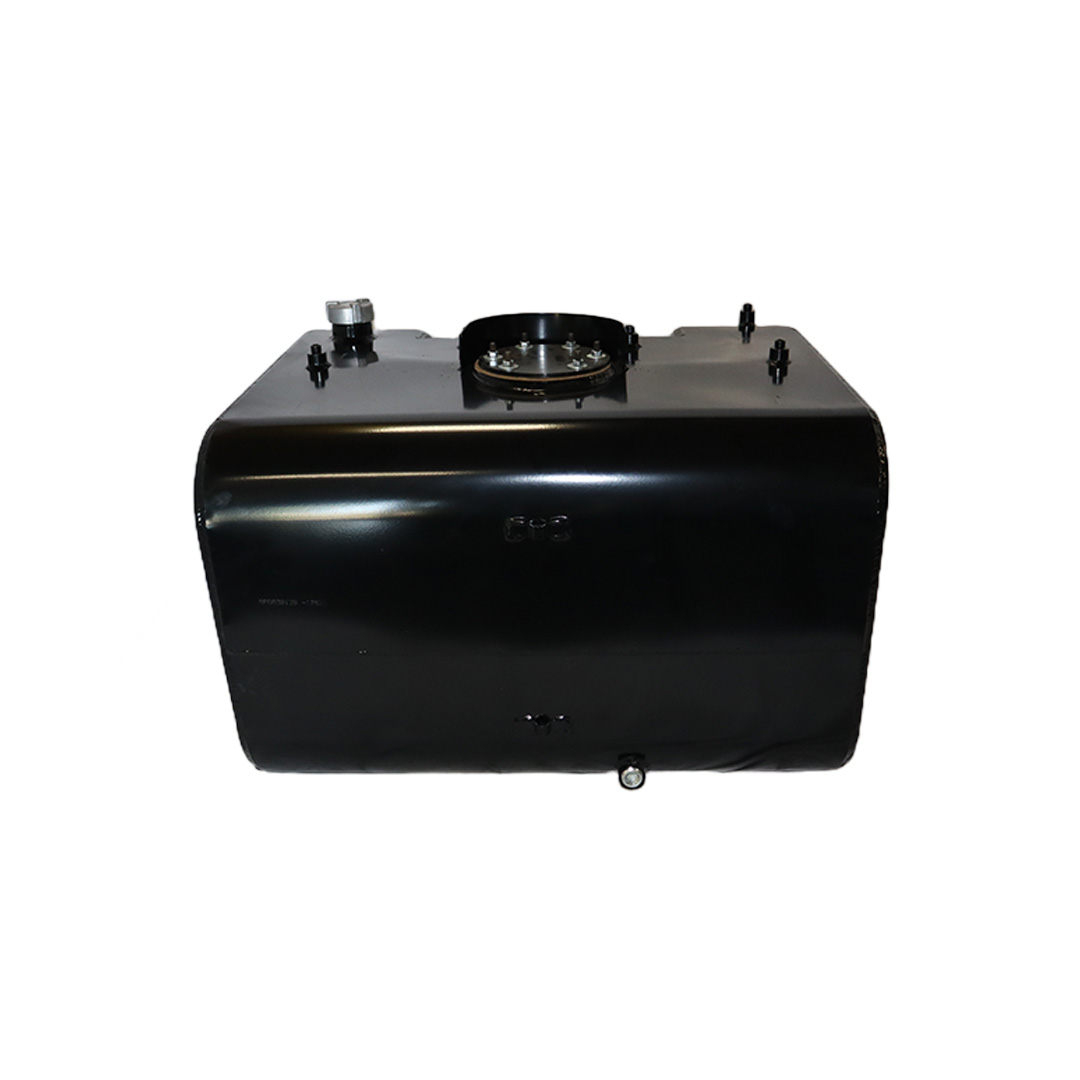

These aftermarket replacement steel diesel fuel tanks with built-in steps from Cleveland Tank are cost-effective alternatives to costly OE replacement tanks. Featuring a heavy-duty recessed steel step, these aftermarket fuel tanks are manufactured by hand from heavy-duty mild grade steel and for superior strength and durability. They come with a gloss black powder coat finish for years of long-lasting anti-corrosion protection, are pressure tested to ensure leak-free performance and have a rust preventive coating applied internally. The steel step tanks also come in various size capacities, are DOT-approved and are for use with diesel fuel. All steel fuel tanks with built-in steps come with a magnetic drain plug, rollover protection vent, vent tubing, fuel cap, drawtube, return, equalizer fittings and sending unit flange. Optional features include a sending unit, sight gauge, locking fuel cap and drain check valve. Find the rectangular steel step fuel tank that matches your applications specs for an original equipment-like fit and installation. This specific steel rectangular-shaped tank with built-in step has a capacity of 100 gallons, weighs 190 lbs. and measures 50.00 in. long by 23.00 in. wide by 22.00 in. high.

OEM Number

GMC 12382967

Mounting Options

Mounting Bracket Part # BL2225-2125C-00

Mounting Strap Part # S5750TT175-00

Bracket Insulator Part # RIF1.50

Strap Insulator Part # RI1.75-01
